Record EEG, ECG or EMG with an Arduino UNO and an Olimex SHIELD-EKG-EMG, a single-channel amplifier that costs about C$75 with the Arduino. This repo holds the sketch that runs on the board, a small bridge that reads it over USB and checks whether the signal can be trusted, and a browser workbench to watch, record, tag, play back and export to EEG-BIDS.
It was built for the Polarize.Tech post Can a $70 board tell me I’m wrong?, which characterises the rig in numbers.
This is not a medical device. It is a hobby amplifier, and nothing it shows is a diagnosis. Read Safety before you put an electrode on anyone.
The rig

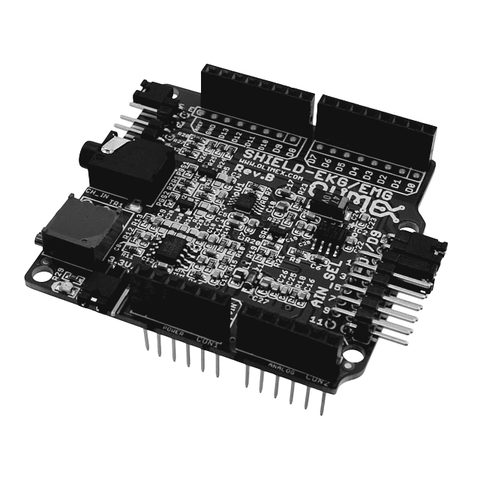

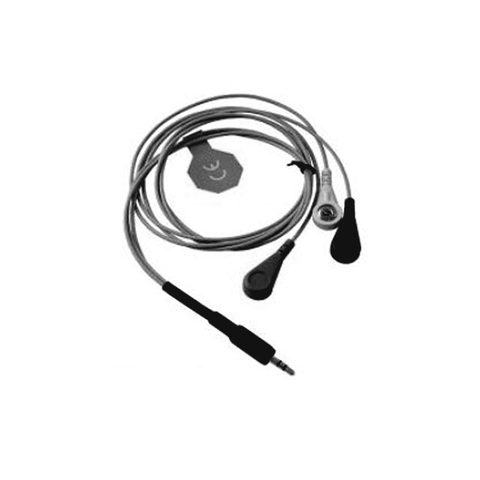

The Olimex SHIELD-EKG-EMG and its SHIELD-EKG-EMG-PRO electrode cable. Photos: DigiKey, as used in the blog post.
| Part | Role |
|---|---|
| Olimex SHIELD-EKG-EMG | Analog front end, 0.16–40 Hz, one differential channel |
| Olimex SHIELD-EKG-EMG-PRO cable | 3.5 mm jack to three snap leads |
| Arduino UNO R3 | 10-bit converter and USB serial |
| Snap electrodes | Disposable gel electrodes are best. The post used self-adhesive TENS pads, which are made for stimulation, not recording. Never ultrasound gel. |
Wiring and flashing: apps/olimex-shield/README.md.
Quick start
You need Python 3.10+ and, for the hardware, pyserial.
git clone https://github.com/polarizetech/olimex-shield && cd olimex-shield
python3 -m pip install pyserial
python3 apps/web/serve.py
Open http://127.0.0.1:8150/. No board yet? Pick demo://synthetic. Synthetic data is badged as
synthetic everywhere it goes, including recordings and exports.
What it can and cannot see
| Band | 0.16–40 Hz, set in hardware before the converter. Software cannot recover anything outside it. |
| Sample rate | 250 Hz declared. The bridge measures the real rate, which runs slightly slow and drifts. |
| Resolution | 10-bit. The µV scale comes from the shield’s built-in cal signal at its nominal amplitude and has not been checked externally (see hardware notes). |
| Intended for | Resting alpha, ECG rhythm, muscle on/off. None of these is validated against a reference amplifier yet. |
| Not for | Brainstem responses (they sit far above 40 Hz), skin conductance, or anything clinical. |
Documentation
- Hardware notes: what was measured on this board, and what is still open
- Recording, playback, uploads and BIDS export
- Standards and roadmap
- Versioning and preregistration: how changes to the measuring chain are versioned, and how claims about the rig are predicted before they are tested
- Experimental features: analysis that is not established practice
- Bridge internals
Safety
The workbench shows this list in full before every connection. Here it is too:
- This is NOT a medical device and nothing it shows is a diagnosis. If you are worried about your heart, your brain or your skin, this app is not the instrument to use.
- Run the board from a BATTERY-POWERED laptop, unplugged from mains. A mains-powered USB host puts your body between a wall socket and an electrode; the Olimex shield is not a medically isolated front end.
- Unplug EVERY mains-connected device from the laptop, not only the charger: an external monitor or HDMI cable, a powered USB hub or dock, an Ethernet cable, and any mains-powered audio interface or headphone amplifier used for stimuli. Each one is a path from mains, through the laptop, to the electrodes.
- If you cannot run on battery, a “properly isolated” power supply alone is NOT enough: isolate the USB data line too, with a USB isolator rated for patient connection (medical isolation, e.g. to IEC 60601-1). A general-purpose USB isolator is not a substitute.
- Never connect an electrode to anyone with an implanted pacemaker, ICD, or any other active implanted device.
- Never give current a path across the chest. While anything mains-referenced is connected, do not place electrodes on both arms or on both sides of the chest – an arm-to-arm or side-to-side pair puts the heart in that path. That includes this app’s own ECG limb leads: record them on battery only, with nothing else plugged in.
- Do not touch grounded metal – a radiator, a tap, a desktop PC’s case – while you are wired up. It gives any fault current a return path through you.
- Do not place electrodes on broken skin, on a rash, or over a wound.
- Stop immediately if the skin stings, burns, itches or reddens under an electrode.
- This app applies no current and delivers no stimulation of any kind. It only listens. If any part of the rig ever produces a sensation, disconnect it.
- One person, one rig, one session. Do not connect two people to the same amplifier.
Tests
python3 scripts/check.py
Status, citing and license
Released as-is for people who want to build the same rig; it is not yet packaged as a community open-source project. Versions are tagged, so download the latest release.
Cite with CITATION.cff. MIT licensed, see LICENSE. Vendored third-party
files keep their own licences: the fonts in apps/web/vendor/design/fonts/ are SIL OFL (licence text
beside each font), and the icons are a subset of Phosphor Icons
(MIT, © Phosphor Icons).
Changelog
Fix spectrum(): summarise every bin in each display bucket
The bug
quality.spectrum() promised to summarise Goertzel bins into display buckets, but evaluated only every step-th DFT bin and skipped the rest. On a record longer than a couple of seconds a narrow line fell between the evaluated bins and disappeared. A 260-count 10 Hz sine in noise over 20 s drew its tallest point at 35.65 Hz, about 1.7 counts. The Monitor tab’s spectrum (POST /spectrum, up to 20 s every ~500 ms) was affected the same way.
The fix
- Every transform bin in the range is evaluated, and each bucket reports the maximum amplitude of the bins it covers. A maximum keeps a narrow line at its own amplitude however long the record is; a mean of power would dilute it. The price, stated in the docstring: the noise floor of the display rises slowly with record length, and it is not a power density.
- Cost: one stdlib radix-2 FFT of the Hann-windowed record, zero-padded to the next power of two at or above twice its length, over at most the most recent 16,384 samples (65 s at 250 Hz). The padding bounds the scalloping loss at 4 %.
freqsare now bucket centres.resolution_hzkeeps its meaning (rate / samples used). New fields:bucket_hz,bin_hz,samples_used,summary. The web client needs no change.
| Record | Tallest point | Amplitude (input 260) | Time |
|---|---|---|---|
| 2 s | 10.01 Hz | 259.5 | 3 ms |
| 20 s | 9.97 Hz | 256.8 | 56 ms |
| 60 s | 9.98 Hz | 257.0 | 119 ms |
Checks
apps/server/dev_check.py: a 10 Hz sine in noise at 2 s, 20 s and 60 s must be the tallest point, within one bucket of 10 Hz and within 10 % of the input amplitude; plus a check on the sample cap.python3 scripts/check.py: all seven suites pass.check_docs.pyrun against the blog post: in step. ruff clean.
Versioning
No version bump and no model-v* tag. quality.py is in the measuring chain, but spectrum() feeds only the drawing: nothing it returns is stored in a session or an export, and assess() and bands() are unchanged. The CHANGELOG entry says so. If this should be 0.2.1 instead, that is a follow-up commit here.
🤖 Generated with Claude Code
Docs site, generated by automatic-documentation-site
What this adds
A generated docs site for this repository, built by automatic-documentation-site. Nothing on it is written by hand: a page is fixed by fixing the Markdown file, docstring or story it names.
| File | What it is |
|---|---|
docs-site.toml |
what the site is generated from |
docs-site/stories/ |
four stories: real calls run at build time |
.github/workflows/docs-site.yml |
rebuilds on every push to main and deploys to GitHub Pages |
docs-site/README.md |
how to build and read it locally |
.gitignore |
the build output and story cache |
No code under apps/ changes.
What the site contains (22 pages)
- Guides: the README (with Safety and the board photos), then the hardware, recording, standards, versioning, bridge, workbench and project documents.
- API reference:
apps/serverandapps/webPython, and the exported browser modules. 85 public symbols, read without importing or running anything. - Stories, on synthetic or modelled inputs only, never a recording of a person:
- what the front end can carry (
rig.carries): alpha reachable, brainstem responses unreachable - which readouts fit in its band (
readouts.gate) - the pre-flight verdict on a good, a flat and a railed channel (
quality.assess) - the delivered sample rate (
timebase.RateEstimatorrecovers a simulated 248.3 Hz)
- what the front end can carry (
One story records a check that does not hold
quality.spectrum of a clean 10 Hz sine has no peak at 10 Hz on a 20 s record. Its docstring says it averages Goertzel bins into display buckets; the code evaluates every step-th bin, so a narrow line between them is missed. The story shows the check as it came out (“absent”) and was not adjusted to pass. The fix belongs in a separate change.
Checked
docsite build . --refresh --strict --publish pageswith the released tool (v0.2.1) and polarize-ui v0.5.15: 22 pages, 4/4 stories run.python3 scripts/check.py: every suite passes.- The built site opens from a folder (
file://) with plots, search and badges working.
After merging
The workflow runs on main and deploys to https://polarizetech.github.io/olimex-shield/ (GitHub Pages is enabled, source: GitHub Actions).
Based on main. The extension catalogue on the tool-only work is not on main yet; when it lands it is one [catalogue] block in docs-site.toml.
